Many building, landscape, and live event projects need to account for vehicle circulation and maneuverability. Sites can be deemed unsafe if they don’t have proper vehicle flow planned.

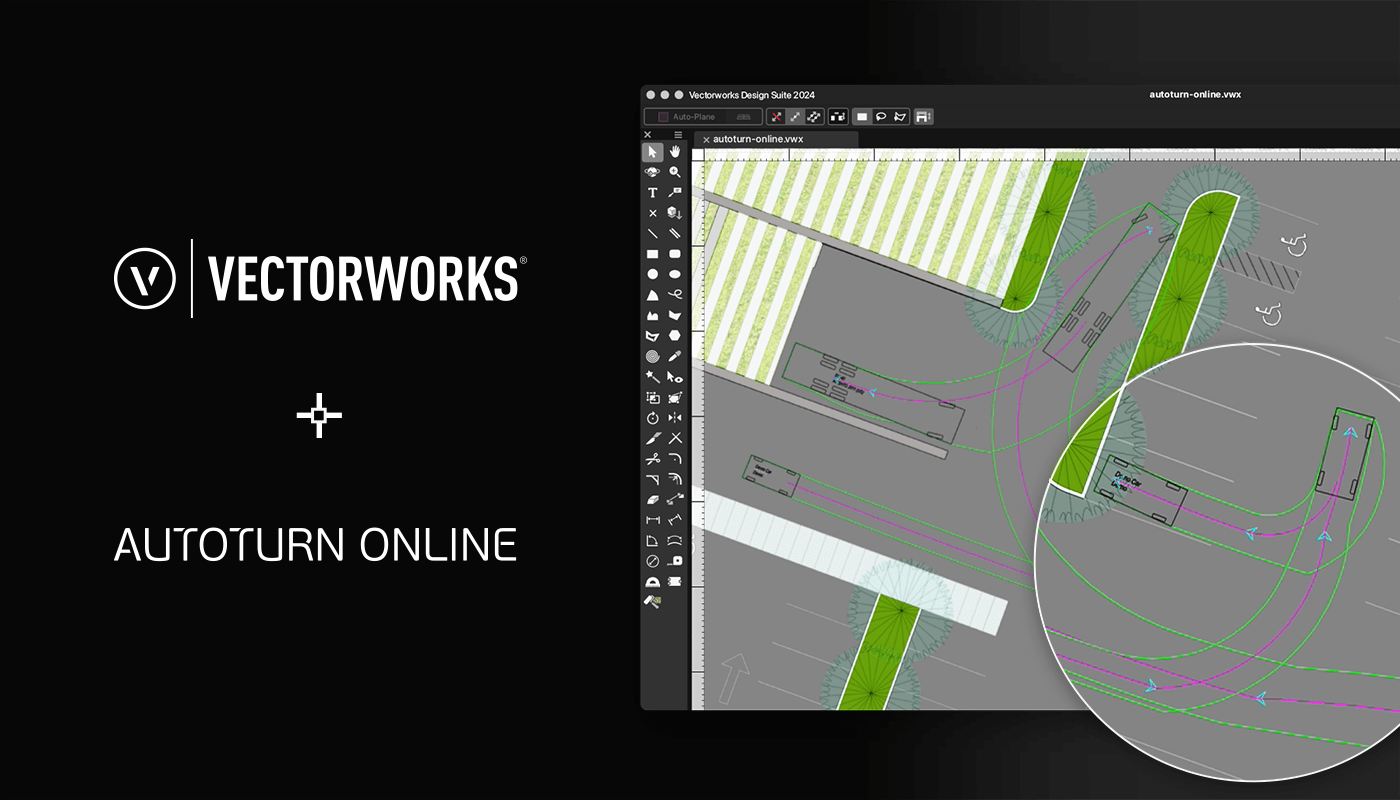

AutoTURN Online by Transoft Solutions is the best in the industry for conducting vehicular swept path analysis and simulated vehicle movement. In Vectorworks, the built-in AutoTURN Online connection is an efficient way to help analyze vehicular movement for the proposed site without leaving the Vectorworks interface.
First, you’ll need to create a free AutoTURN Online account. You can do so here. Until April 30, 2024, you can get free access to all available vehicles for use in your Vectorworks projects. Make sure to visit the Customer Portal for more information.
There are a few things to consider when setting up your Vectorworks drawing to send to AutoTURN Online. Let’s get into it!
Your Vectorworks drawing likely contains more detailed linework than necessary for simulation. AutoTURN Online only needs the linework (or image thereof) of boundaries in the area where analysis is required. Additionally, AutoTURN Online is a 2D-only application, which means it’ll only use the Top/Plan linework representations from the Vectorworks file.
You can send up to 30,000 objects to AutoTURN Online, but to avoid performance issues, you’ll want to send only the necessary linework from your drawing. Do this by toggling visibility settings of designated classes and layers or by manual selection.
In other words, it’s more than OK for your Vectorworks drawing to be quite basic. Analysis is the name of the game here, not visuals.
You can also send a background image of the Vectorworks drawing to use for additional context in AutoTURN Online. Do note, however, that this is strictly an image whose linework can’t be used for simulation. You'd have to draw a vehicle path over the image in AutoTURN Online to simulate in this case.
If you’re planning to create a path-follow simulation, which requires an existing path for the simulated vehicle to follow, create the path in Vectorworks using polygons or polylines. Join all portions of the path into a single object with the Compose command.
Once you’ve isolated which geometry to send to AutoTURN Online, you’re almost ready for analysis. The next step is to send the design to AutoTURN Online using the Send Design to AutoTURN Online command.
Here’s where to find that command in the Vectorworks industry products:
After clicking the send command, a web browser will open to AutoTURN Online within the Vectorworks interface and you'll have a chance to double-check that you're sending the right geometry. You’ll need to log in or create an AutoTURN Online account at this point.
A path follow simulation requires a pre-defined path for the selected vehicle to travel. As mentioned before, it's recommended that the path is defined in Vectorworks before sending to AutoTURN Online.
To create a path-follow simulation in AutoTURN Online:
You can always select the path and click Delete to start over.
An arc path simulation involves drawing a path using the currently selected vehicle’s properties and constraints. The flexible simulation allows you to experiment by drawing in real time.
To create an arc path simulation in AutoTURN Online:
You can always select the arc path and click Delete to start over.
The possibilities are truly endless with what you can analyze in AutoTURN Online. It all depends on the needs of your project!
A master planner might simulate parking for large vehicles to ensure they can maneuver enough to fit into tight spots. An architect might want to include analysis with their proposal to show that the building leaves plenty of space for parking. Or an event planner might verify that large commercial vehicles are able to get close enough to the event space to unload.
All of these operations and more can be accomplished with the methods above.
Following your simulation, AutoTURN Online will indicate issues in red.
If your analysis yields issues, close the AutoTURN Online web browser and adjust the design. AutoTURN Online will give you direction on what needs to be changed, such as areas where the path exceeds maximum vehicle turning angles.
With changes made in Vectorworks, resend the design to AutoTURN Online and perform another simulation. Once you reach a satisfactory analysis, click Close and Get Analysis .
And that’s how you can access and use AutoTURN Online to simulate vehicle movement! For a more in-depth exploration of using AutoTURN Online with Vectorworks, make sure to check out the free webinar below.
