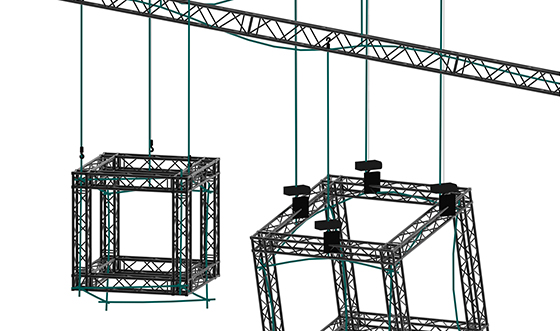

Entertainment Rigging Analysis Module

The Braceworks add-on for Vectorworks Spotlight and Designer provides design, production, and rigging professionals with an easy way to gauge the performance of temporary structures under load.

This one-of-a-kind module ensures safety and compliance with engineering codes and standards, creating a completely integrated modeling, analysis, and documentation process in one interface.

Online Demo Request

Request a personalized, online demo with one of our in-house experts.

Learn more about Braceworks Braceworks can analyze complete 3D structural systems and conduct static analyses, so you can make smart decisions. And Braceworks will save you time and money — it allows you to generate certifiable documentation, within the same file containing your event design.

Watch this video to learn more.

FAQ

If you’re an event designer, production manager, rigging professional, or you run a venue requiring truss loads or rigging, you’ll get great value out of Braceworks.
The Braceworks add-on module seamlessly integrates with Vectorworks Spotlight to help you gauge the viability of temporary entertainment structures under load. It analyzes complete 3D structural systems modeled in Spotlight. It supports point- and distributed-load types, straight and curved structural members, and multiple materials. The Finite Element Analysis (FEA) performs static analyses, with results displaying graphically on the model for easy reference. Detailed calculation reports can be created. Models can be exported in DSTV format for collaboration with structural engineers using other FEA software.
Braceworks designs to EC3 (steel structures) and EC9 (aluminum structures).
No. Drawings are certified by structural engineers. While the calculation methods behind Braceworks are based on the Finite Element method, the software does not replace structural certification or stamping. But, it will save you, your team, and your structural engineer tremendous amounts of time by generating the calculations directly from the model instead of by hand. Detailed calculation reports can be created. Models can be exported in DSTV format for collaboration with structural engineers using other FEA software.
We have done benchmark comparisons of calculations from Braceworks with the structural engineering packages, Dlubal RSTAB, and Scia Engineer. To see the comparison of results, please read this benchmark comparison in the knowledgebase.
Liability Disclaimer: The user of the software is solely responsible for the use of the software product and for the completeness and accuracy of the analysis and design results. The software does not provide certified calculations; certified calculations can be provided only by a licensed structural engineer. It is the user’s responsibility to verify that all loads, forces, connections, and calculations comply with all manufacturer load tables, equipment labels, and engineering specifications. Equipment, structures, designs, and calculations must comply with all applicable standards (for example, ANSI, Eurocodes, etc.) and meet the requirements of the authority having jurisdiction. YOU ARE SOLELY RESPONSIBLE FOR ALL WORK PRODUCT CREATED USING THE SOFTWARE.
Yes. Depending on the types of symbols you have, you may need to follow certain steps to make them Braceworks compatible. Please refer to the online Help system for specifics.
Yes. You can select the cross section from our predefined list or create your own custom cross section.
The following Spotlight plug-in objects can be hung on a Braceworks truss: lights, TV, projector screen, blended screen, LED screen, speaker, speaker array, and soft goods. Additionally, generic point loads and distributed loads can have customized geometric representations.
No. Braceworks is an add-on module that can be purchased for use with Vectorworks Spotlight or Designer software.

When the Braceworks module is installed for Vectorworks Spotlight and Designer, it provides new commands and tools to insert and connect supporting structures (such as trusses and lighting pipes), add hoists and other supports, and then adds loads to the structures.

With a Braceworks license, you can analyze and check structures according to EC3 and EC9. For easy reference, results are shown graphically in the model. Detailed calculations are automatically generated and models can be exported as DSTV files to share with structural engineers for validation. See the online Help system for more details on Braceworks functionality and workflows.
Braceworks is available to purchase as of September 12, 2017. For pricing and ordering options, please contact our sales team at 888.646.4223 or your local distributor, which can be found here.
Currently, the product does not calculate bridles. It is being evaluated as a future enhancement to Braceworks.
Yes. Braceworks provides a PDF report of all the load calculations needed, as well as a DSTV file that structural engineers may use to review the calculations in any structural analysis software.
Vectorworks has included truss content for several truss manufacturers who have agreed to provide the information for use in Braceworks. However, some manufacturers, such as Thomas and Tomcat, are not included in the default content provided at this time. If a manufacturer you wish to have is missing from the default content provided, we recommend you contact those manufacturers to encourage their cooperation. In the meantime, for any content not provided by default, please refer to the online Help system for instructions on how to create your own truss content libraries.
No. Braceworks works on the same system requirements as Vectorworks software. Please refer to our system requirements page for the most up-to-date information and system recommendations.
Other users of Vectorworks Spotlight will be able to add objects such as truss, lighting devices, hoists etc. However, only licensed users of Vectorworks Spotlight with Braceworks will be able to do calculations or reports.
In addition to the online Help system in the software, you can contact Vectorworks technical support at tech@vectorworks.net, or seek help through our active online community.
We’re happy to keep you informed and answer your questions about Braceworks. Complete this form to stay in the know or request a demo.

The user of the Braceworks software is solely responsible for the use of the software product and for the completeness and accuracy of the analysis and design results. The software does not provide certified calculations; certified calculations can be provided only by a licensed structural engineer. It is the user’s responsibility to verify that all loads, forces, connections, and calculations comply with all manufacturer load tables, equipment labels, and engineering specifications. Equipment, structures, designs, and calculations must comply with all applicable standards (for example, ANSI, Eurocode etc.) and meet the requirements of the authority having jurisdiction. You are solely responsible for all work product created using the software.
